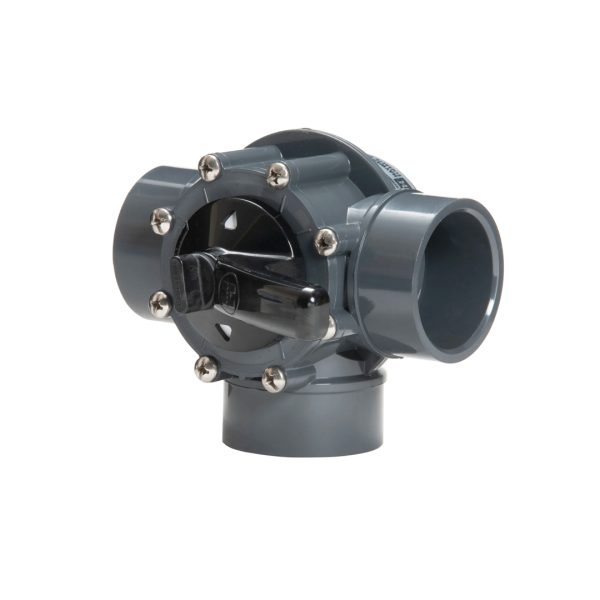

Hayward PSV Diverter Valve
$110.00 – $130.00
You must be logged in to post a review.
- Easy dial index indicates the flow setting at a glance.*
- Easy lock – locks into positioning with the tightening of just one knob.*
- High performance CPVC or PVC construction ensures long life in both commercial and domestic applications.
- Compatible with Hayward (and competitors’) valve actuators.
- Available in sizes to suit most plumbing fittings.
*2-way and 3-way diverter valves only
P/No. | Description | Internal Pipe Size | External Pipe Size | Height | Width | Depth | Flow Rate (Ltrs/Min.) |
HD2W40 | 2-way valve | 40mm | 50mm | 15mm | 16.5mm | 12mm | 283 |
HD3W40 | 3-way valve | 40mm | 50mm | 15mm | 16.5mm | 12mm | 283 |
HCV40 | Check valve | 40mm | 50mm | 15mm | 16.5mm | 12mm | 283 |
HD2W50 | 2-way valve | 50mm | 65mm | 15mm | 16.5mm | 12mm | 473 |
HD3W50 | 3-way valve | 50mm | 65mm | 15mm | 16.5mm | 12mm | 473 |
HCV50 | Check valve | 50mm | 65mm | 15mm | 16.5mm | 12mm | 473 |
Modern swimming pools are no longer featureless rectangles – with the addition of features such as spa pools and waterfalls, it is important that water flow is managed carefully and accurately. The Hayward PSV Diverter and Check Valves help control both the direction and volume of water flow throughout your pool system to ensure that water remains at the perfect level, avoiding the possibility of your pool overflowing.
The Hayward PSV Diverter and Check Valves come in three different models: the 2-way and 3-way diverter valves, and the 2-way check valve. The 2-way diverter valve is designed to block the flow of water from one direction, while the 3-way valve is designed to divert incoming water flow from your pump to one of two of the different branches of your system’s plumbing. They both have a diverter mechanism to regulate the flow of water coming out of the valve. The check valve is designed for use with return and intake water flow.
The full-flow valves are available with either a 1½ “ or 2” internal fit. Sturdy CPVC or PVC construction ensures a long life and resistance to higher temperatures. The handle is removable without tools and allows for quick and easy port customization.
Easy to Use
The Hayward PSV Diverter Valves have an easy dial index which indicates the flow setting at a glance. They are also easy to operate, locking into position with the tightening of just one, easily-accessible knob.*
Durable in the Harshest Conditions
The Hayward PSV Diverter and Check Valves are designed with durability in mind. These valves use high performance CPVC which ensures long life, and the components are made of corrosion-resistant materials allowing for proper function over an extended period.
Protect Your Pool
Without the right tools, a feature attached to your pool could cause it to overflow if not handled correctly. The Hayward PSV Diverter and Check Valves are full flow and have the unique capacity to customize the level of flow and prevent excessive flow.
Compatible with any Brand
The Hayward PSV Diverter and Check Valves are compatible with both Hayward Actuator Valves and those of their competitors, so you can rest assured that this product will be perfect for your pool system regardless of the products already in place.
If you have any features added onto your pool – or are even considering it – then for you and your pool’s sake you simply must invest in a Hayward PSV Diverter or Check Valve. Whether it be a hot tub, water feature, or a solar system, the Hayward valves will ensure that water flow is carefully managed. The valves are compatible with any device regardless of brand, and are designed for maximum flow efficiencies with pressure ratings up to 50 psi. It’s safe to say that a Hayward valve will be perfect for your pool regardless of the setup.
The Hayward diverter and check valves are extremely easy to use. The 2-way and 3 way valves have easy-to-read dial indexes which allow you to easily monitor the flow of water into your pool, and with the tightening of just one knob the handle locks into position. The check valve has a clear top cover to provide for easy viewing of water flow direction at a glance.
Hayward have focused on reliability with their diverter and check valves, recognising their importance to your home pool systems. All Hayward PSV Diverter valves are full-flow, but have a unique system for customising the level of flow and prohibiting excessive flow. With the twist of a handle you can set up the valve to completely stop the flow of water, regulate a limited flow, or allow the maximum flow.*
With a Hayward valve you won’t need to worry about replacements any time soon – all components are made from corrosion-resistant materials, allowing for proper function over an extended life, and saving you money in the long-term. The diverter and check valves are available in both lower cost PVC or more durable CPVC, providing greater heat tolerance and preventing warping and leaks in the most demanding environments.
The Hayward PSV Diverter and Check Valves are an absolute must-have for any pool owner wishing to protect their home pool system. With one installed you can spend more time enjoying your pool system and less time worrying about your pool overflowing.
*2-way and 3-way diverter valves only
