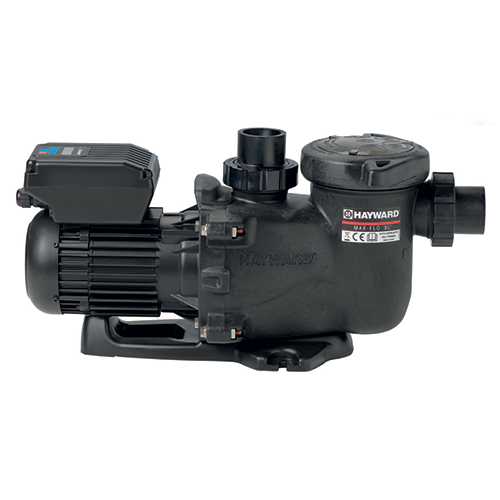

Hayward Maxflow™ VS

Reviews

There are no reviews yet.

Be the first to review “Hayward Maxflow™ VS”

Your email address will not be published. Required fields are marked *

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Features

  • Advanced permanent magnet, totally enclosed fan cooled motor (TEFC) design providing incredible energy efficiency and reliability.
  • Energy Solutions real time electrical consumption display.
  • Integrated, programmable interface to customise speed, duration and priming time – all while monitoring power consumption.
  • Incredibly quiet operation, especially at energy-saving lower speeds.
  • Aligns with the entire MaxFlo™ line of pumps for seamless retrofit installations.
  • Lexan™ see through strainer cover for easy viewing of basket debris.
  • All models include 40mm & 50mm connections.
  • Latest Hayward hydraulic design for increased efficiency and priming ability.
  • Self-priming capabilities of suction lifts up to 2.4 metres above water level.
  • Includes countdown timers.

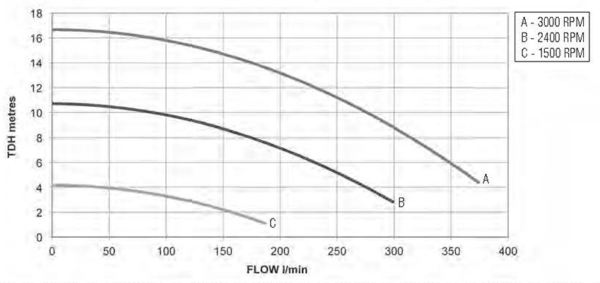

Specs

MaxFloTM SP2300VS Flow Rate LPM Total Head Loss RYM Input Watts Input Volts
Variable 160 2.0.0 1500 138 220-240
Variable 256 5.0 2400 522 220-240
Variable 320 8.0 3000 1030 220-240

Note: All flow rates are based on maximum speed at 8m total dynamic head.

Union Connection (mm) Energy Rating (stars) Electrical Connection Voltage (Hz/phase) Amps Diameter (mm) – W x L Height (mm) Weight (kg) Noise level (dBA @ 1m)
40 or 50 8 Plug & Play 220-240 50/1 4.4 246 x 611 283 10.5 52.7

Taking the first step in energy efficiency is simple with the MaxFlo™ VS Variable Speed Pump. The Hayward MaxFlo™ VS pool pump is the easiest, most affordable way to add convenient scheduling and smart control to existing pool filtration.

The MaxFlo™ VS offers up to 80% energy reduction when compared to most other residential pool pumps, meaning that there won’t be a long wait for a return on your investment.

The MaxFlo™ VS is suitable for in-ground, on-ground and above-ground applications. It can also be used in spa pool systems and water features.
