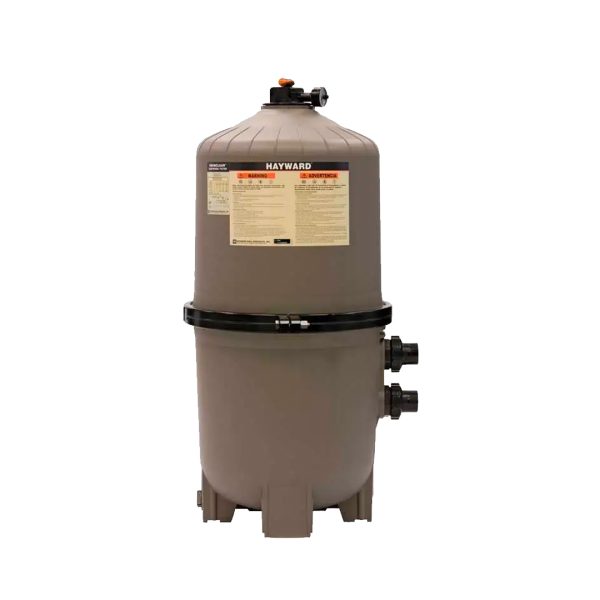

Hayward SwimClear™ Quad Cluster
- Quad-Cluster™ of high-quality reusable Reemay Polyester SwimClear™ cartridge elements provide 330 or 530 square feet of filter area for extra dirt-holding capacity and long filter cycles.
- High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.
- PermaGlass XL™ filter tanks made from extra durable glass reinforced co-polymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems.
- Self-aligned tank top and bottom make access to serving the Quad-Cluster™ cartridge elements fast and simple.
- Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections.
- Non-corrosive top closure plate prevents elements from lifting and allowing unfiltered water to by-pass into pool or spa during operation.
- Cleaning cycle indicator and pressure gauge combination indicates when filters need to be cleaned.
- 2” full-flow internal piping and plumbing for less resistance to flow and maximum performance.
- Noryl™ Bulkhead fittings are heat resistant and provide high impact strength to coupling connections.
- PVC union coupling connection accepts 1.5” or 2” piping for plumbing versatility.
- Full size 1.5” integral drain allows for fast, 100% clean-out and easier flushing of tank.
|P/No.||Description||Effective Filtration Area (m2)||Design Flow Rate (Lpm)||Turnover Litres – 8 hour||Turnover Litres – 10 hour|
|SCQ330||330 Sq ft Quad Cluster Cartridge||30.2||462||222,000||277,000|
|SCQ530||530 Sq ft Quad Cluster Cartridge||48.8||568||273,000||341,000|
The Hayward SwimClear™ reaches new horizons in cartridge filter technology. With four reusable polyester cartridge elements for a choice of heavy-duty or extra-long filter cycles, and tanks created from new, stronger, reinforced co-polymer the SwimClear™ is the ultimate in strength, durability, and long life – even for the toughest conditions.
Built using the strongest materials available
The Hayward SwimClear™ Quad Cluster’s PermaGlass XL™ filter tanks are built from an extra-durable co-polymer, a reinforced plastic of unmatched strength.
Intuitive features for easy use
The Hayward SwimClear™ has a cleaning cycle indicator and pressure gauge combination that indicates when the filters need to be cleaned, and the large cartridge size means that it can go for an entire season without needing to be cleaned.
Efficient filtering saves you time and money
With its 330 or 530 square foot filter area, the SwimClear’s™ filtering is both effective and efficient, meaning less time spent filtering and less energy used.
Long-life and durable materials keep maintenance at a minimum
The SwimClear™ Quad Cluster filter is made from durable materials like the heat-resistant Noryl™ Bulkhead fittings to ensure a long life with minimal maintenance.
The Hayward SwimClear™ Quad Cluster cartridge pool filters offer you high performance and operational convenience at a fraction of the cost. Its cluster of four reusable polyester cartridge elements gives you both heavy-duty wear and extra-long filter cycles, for easy and intuitive use. The SwimClear™ has a cleaning cycle indicator and pressure gauge combination that indicates when the filters need to be cleaned, eliminating guesswork on your end.
The SwimClear™ Quad Cluster is built for efficiency – the cartridge elements provide 330 or 530 square feet of filter area and extra dirt-holding capacity for long filter cycles, while the precision-engineered extruded core provides extra strength and superior flow, giving you a hard-working pool filter that won’t hit you in the back pocket.
The SwimClear™ Quad Cluster isn’t just efficient – it’s strong too. The filter tank is built using injection-reinforced PermaGlass XL™ co-polymer for extra durability, while the filter elements’ extruded core is precision engineered for extra strength and superior flow. The superior strength and durability of the SwimClear™ means that maintenance is kept at an absolute minimum, giving you years of trouble free operation and sparkling, crystal clear water.
The Hayward SwimClear™ is built to achieve the highest level of performance with the most efficiency possible. Hayward is the leading name in pool products – if you want to find out why, and what Hayward products are right for your home pool or water system, contact us so we can get you set up with the only pool and water products you will ever need.
