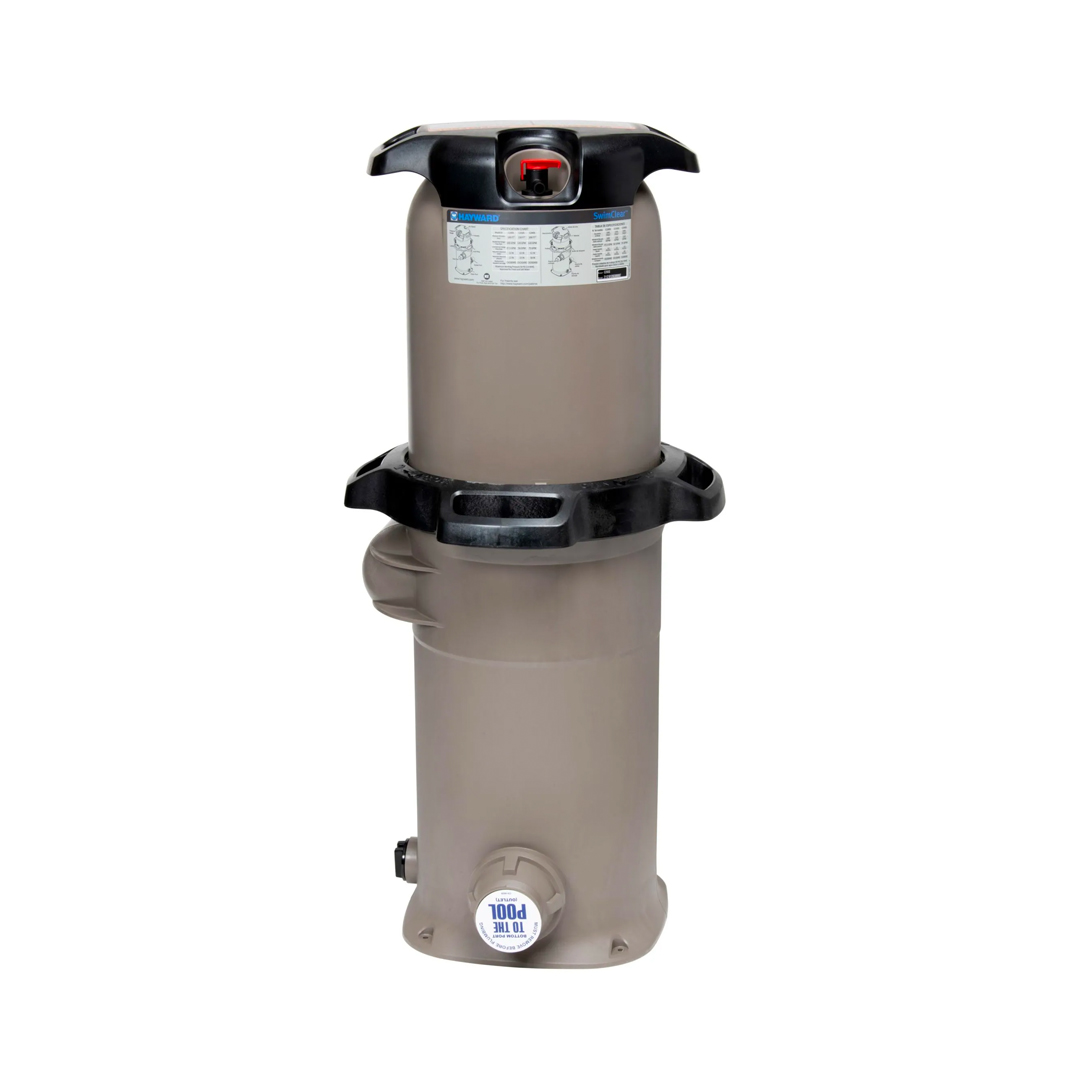

Hayward SwimClear™ Cartridge Filter
- Captures more dirt for super water clarity without the need of any supplemental media.
- Industry-leading hydraulic efficiency allows the pump to run at a lower speed or less time, which increases energy savings.
- Easy-Lok™ ring design allows quick access to internal components for quick and simple maintenance.
- Ergonomic grip handles provide multiple handling locations without touch fibreglass for easy installation and maintenance.
- Lowest body height to lift elements for convenient and quick cleaning and replacement.
- Recessed pressure gauge and manual air relief enables users to place head assembly upside down on the pool pad, protecting the seal from contamination.
- 50mm x 65mm union connections makes installation and servicing fast and easy.
|P/No.||Description||Effective Filtration Area (m2)||Flow Rate (LPM)||Litres/8 hrs||Litres/10 hrs||Filtration Range (microns)|
|SC100||100 Sq ft. Cartridge Filter||9.29||379||182,000||227,000||10-20|
|SC150||150 Sq ft. Cartridge Filter||13.94||455||218,000||273,000||10-20|
|SC200||200 Sq ft. Cartridge Filter||18.58||455||218,000||273,000||10-20|
Hayward’s newest addition to the SwimClear™ family is the SwimClear™ Cartridge Filter – the most efficient single element cartridge filter ever produced. For both new and aftermarket installations, the SwimClear™ captures more dirt than any other filter, for superior water clarity without the hard work.
Easy internal access makes maintenance easy
The SwimClear™ Cartridge FIlter comes with an Easy-Lok™ ring design for quick access to internal components, for quick and simple maintenance.
Efficient running saves you money in the long term
The Hayward SwimClear™ Cartridge Filter utilises industry-leading hydraulic efficiency that allows the pool pump to run at a lower speed or for shorter amounts of time, increasing energy savings and lowering running costs.
Superior operating efficiency without the hard work
The SwimClear™ single element cartridge filter captures more dirt for superior water clarity, without the need for any supplemental media.
Easy installation takes out all the hassle
The SwimClear™ filter offers perfect alignment with Hayward variable-speed pumps for easy installation.
Whether you’re building a pool from scratch or are looking for an aftermarket solution, look no further than the Hayward SwimClear™ single element cartridge filter for all your filtering needs. The SwimClear™ is the most efficient single element cartridge filter on the market. The SwimClear™ brings to you superior water clarity without the need for supplemental media or backwashing – all the while running cheaper than competitors’ models.
The Hayward SwimClear™ single element cartridge filters utilise a reusable single element, reinforced polyester filter cartridge to provide a high degree of water clarity with absolute minimum care. That, combined with industry-leading hydraulic efficiency allows the pump to capture more dirt, giving you clearer water, all while using less energy as it runs at either a lower speed or for less time, saving you money in the long-term.
The Hayward SwimClear™ single element cartridge filter is super-easy to install into any Hayward-branded variable speed pool pump. With a low body weight and ergonomic grip handles, installation is a breeze and it is extremely easy to avoid contact with any fibreglass-based surfaces. The unique design ensures that no tools are needed to remove or replace the cartridge in the filter assembly. Simply unscrew the lock ring, lift off the filter head and remove the cartridge: it’s that easy.
The SwimClear™ single element cartridge filter is manufactured from durable, corrosion-proof material, meaning they are designed with both continuous and intermittent operation in mind, for installation above or below the pool line, and in fresh, saltwater, or spa pools. Combining efficiency, durability and quality not seen anywhere else in the market, the Hayward SwimClear™ single element cartridge filter is truly the only filter you need. So contact us today so we can get you set up with the best single element filter available!
